Patient Demographics

IMS/Patient Demographics Interface

The IMS/Patient Demographics interface can be used to create identities for a healthcare facility or for a specific healthcare professional. These created identities are then available for healthcare professionals:

In Rofim, to be used in medical acts (MultiDisciplinary Meetings, Teleconsultation or Assisted Teleconsultation, Teleexpertise, Referral)
In the interoperability use cases detailed in the following sections.

IMS/Patient Demographics Interface

Data	Value
Supported Format	`IHE PAM 2.5` to `2.7`

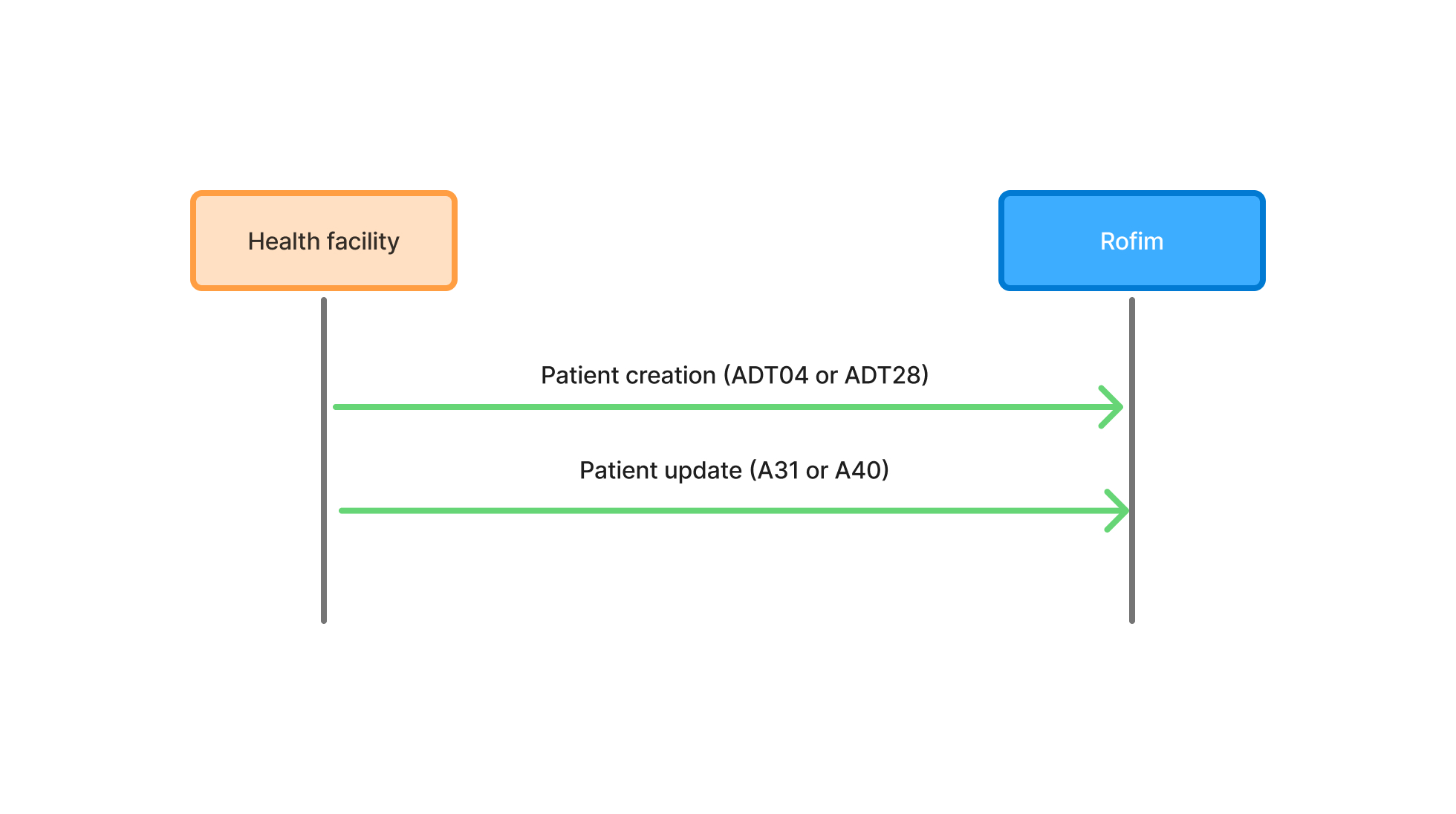

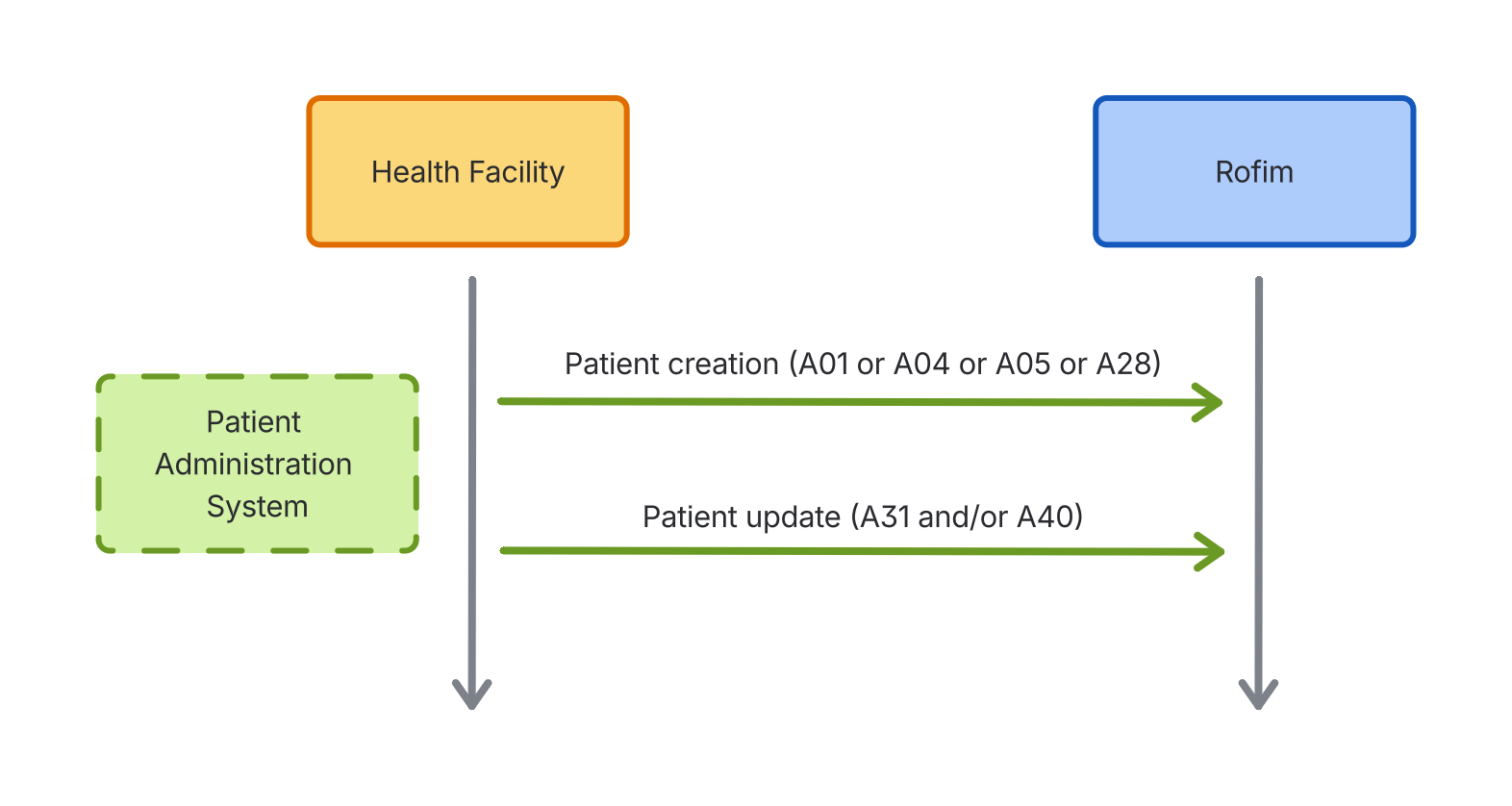

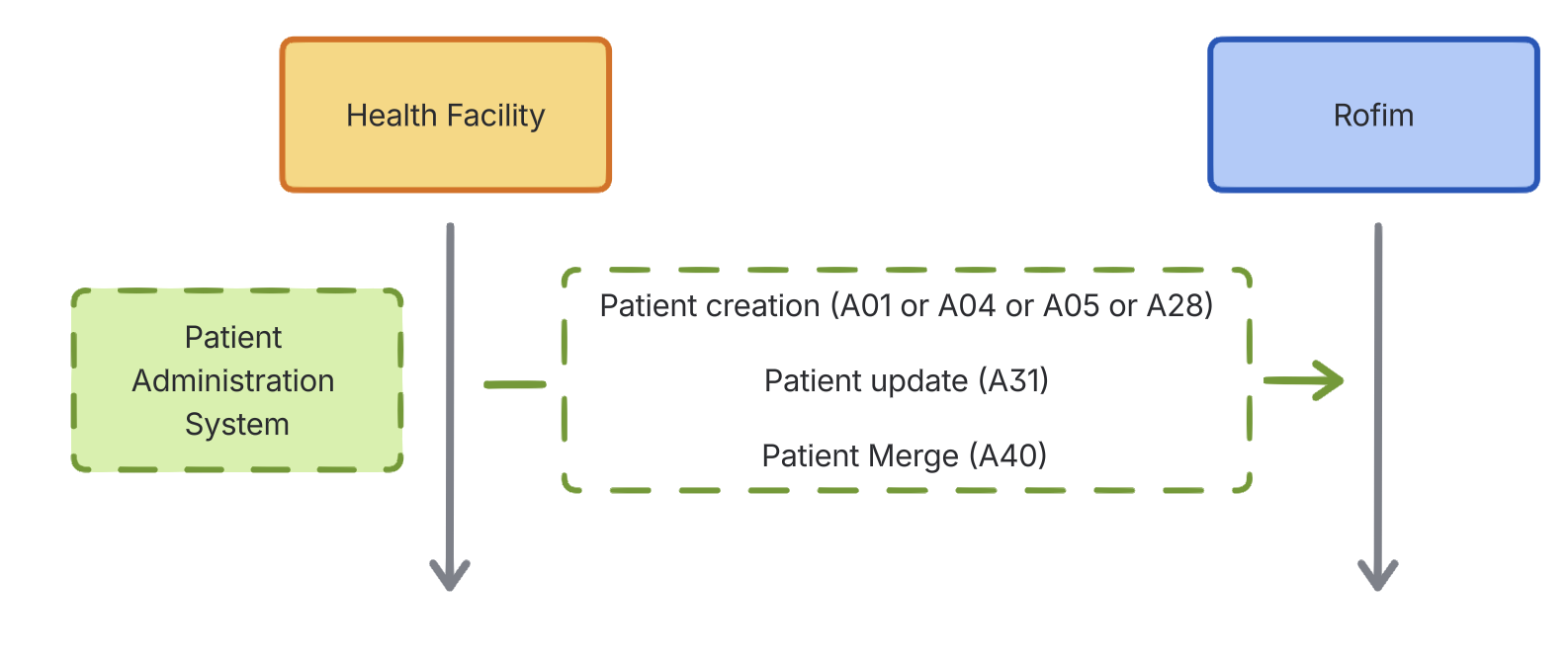

Supported Messages (input)	`ADT 01` or `ADT 04` for creating patient data (with admission/venue). `ADT 28` for creating patient data (without admission/venue), mainly used if all patients from the facility are sent to Rofim. `ADT 31` for modifying patient data. `ADT 40` for updating IPP/Patient ID following a merge
Message Type	`POST`
API Link	base_url/ims

Important Data

Rofim relies on standard messages and retrieves information from fields standardized by IHE. However, certain rules and format requirements must be respected. These are described below.

Patient Demographics Data

Patient identity data is retrieved from the PID segment and ADT messages. The table below details the important data.

Data	Field	Format	Required	Comment
Patient ID / IPP	`PID.3.1`	String	Yes	`PID.3.1` when `PID.3.5='PI'`
Patient SSN	`PID.19`	String	No	Social Security Number
Patient INS	`PID.3.1`	String	No	`PID.3.1` when `PID.3.4` contains `'ASIP-SANTE-INS'` Country specific : 🇫🇷
Patient First Name	`PID.5.2`	String	Yes	`PID.5.2` when `PID.5.7='D'`
Patient Birth Name	`PID.5.1`	String	Yes	`PID.5.1` when `PID.5.7='L'`
Patient Usual Name	`PID.5.1`	String	No	`PID.5.1` when `PID.5.7='D'`
Patient Gender	`PID.8.1`	String	Yes	`M` or `F` expected
Patient Date of Birth	`PID.7.1`	Date	Yes	Birth date/time in `HL7 Time Stamp` format, for example: `19730416`
Patient Phone Number	`PID.13.1`	String	No	Uses number of type `PID.13.3='CP'`, or if absent, the one of type `PID.13.3='PH'` Number must be in format `+33601010101`, according to E.164 standard
Patient Email Address	`PID.13.4`	String	No	When `PID.13.2='NET'`
Patient Postal Address Street	`PID.11.1`	String	Conditional	Address must be complete or completely absent, meaning presence of all `PID.11.*` fields or none
Patient Postal Address Zip Code	`PID.11.5`	String	Conditional
Patient Postal Address City	`PID.11.3`	String	Conditional
Patient Postal Address Country	`PID.11.6`	String	Conditional

❗️
In case of incompatible format for email address or phone number, patient creation will be rejected and the patient will not be created.

Visit Data

The patient, when created, must be attached to a doctor or a network. This data must be indicated in ADT 01, ADT 04 or ADT 28 messages in the PV1 segment.

Data	Field	Format	Required	Comment
Doctor ID (RPPS)	`PV1.7.1`	String	Conditional	Value of `PV1.7.1` if field `PV1.7.13='RPPS'`. This field is required if `PV1.10` is absent
Department or Service	`PV1.10`	String	Conditional	This data must correspond to a Rofim `network ID`. If this data is populated, the patient will be created on the corresponding network. In case of an `ADT 28` message, this segment must be added to the standard message.
Patient IEP / Admission ID	`PV1.19.1`	String	Conditional	Patient admission ID. This field is not required for patient creation but may be necessary for report and billing flows. This data can be updated later when creating acts (MDM, TE, TC, TCA...).
Functional Unit	`PV1.3.1`	String	Conditional	This field is not required for patient creation but may be necessary for report and billing flows. This data can be updated later when creating acts (MDM, TE, TC, TCA...)

📘
In case of simultaneous presence of Doctor ID (RPPS) and Department or Service data, the patient will be created on the Department or Service

Other ADT Message Data

Other data in ADT messages must comply with HL7 and IHE PAM 2.5 to 2.7 standards.

Data	Field	Format	Required	Comment
Referring Doctor ID (RPPS)	`ROL.4.1`	String	Conditional	Value of `ROL.4.1` if field `ROL.4.13='RPPS'`and `ROL.3.1='ODRP'`

Expected Message Examples

TODO

MSH|^~\&|1.2.250.1.211.7.1.200.1.2|MCK|EAI|EAI|20250326095554||ADT^A04^ADT_A01|131194658|P|2.5^FRA^2.5|50587254||||FRA|8859/1|||A03^IPG~ADD_ENTREE_HOPITAL^INTEG
EVN||20250326095532|||BRICEVA
PID|||231067^^^MCK&1.2.250.1.211.10.200.1&ISO^PI~198765678765^^^ASIP-SANTE-INS-NIR&1.2.250.1.213.1.4.8&ISO^INS||XXXXX^XXXXXXXX^XXXXXXXXXX^^^^L||19000101000000|M|||XXXXXXXXI^XXXXXX^XXXXXXXXXXXX^^130000^FRA^H~^^^^^UNK^C~^^MARSEILLE^^13000^FRA^BDL^^13000||0600000000^PRN^PH~0600000000^PRN^PH~0600000000^PRN^[email protected]^NET^internet|||W||12345678765^^^MCK|||||MARSEILLE|||FRA||||N||VALI
PV1||O||||||234567SDF^DR^DR^^^^^^^ASIP-SANTE-PS&1.2.250.1.71.4.2.1&ISO^^^ADELI||||||||N|||562062153^^^MCK&1.2.250.1.211.12.1.1&ISO^AN|C|07|N|||||||||||||||||||N|||20250328070000|20250328235900
PV2|||||||TO
ZBE|EH_11502436_1^MCK|20250328070000||INSERT|N||^^^^^^UF^^CO3849^3849|^^^^^^UF^^^6568a83b8cc13bbb05b0d76f|M
ZFP| |
ZFV|
ZFM|
IN1|1|972|||||||||||47121231|||XXXXXX^XXXXXXX|||||||||||||||||||||||||||||||||12345678765432345
IN2||||||||||||||||||||||||||||^C

TODO

MSH|^~\&|HM_HFAC|HM_HFAC|OXYGENE|HFAC|20251021143421||ADT^A31^ADT_A05|504333293|P|2.5^FRA^2.5||||AL|FRA|8859/1|FR
EVN||20251021143414|||I10249^Name FirstName^^^^^^^I_MONACO^D^^^EI
PID|1||999888777^^^I_HFAC^PI||ROFIM UN MAJ^Prenom Maj^Prenom^^MR^^L||20251021000000|M|||Adresse 1 MAJ^Adresse 2\S\Adresse 3^PARIS^^75000^100^H~^^PARIS^^75000^100^BDL^^99138||^PRN^PH^^^^^^06.06.06.06.06^^^0606060606~^NET^Internet^[email protected]||||||||||75000 PARIS||1|138^PARIS||||N||PROV
PV1|1|N||||||||

TODO
